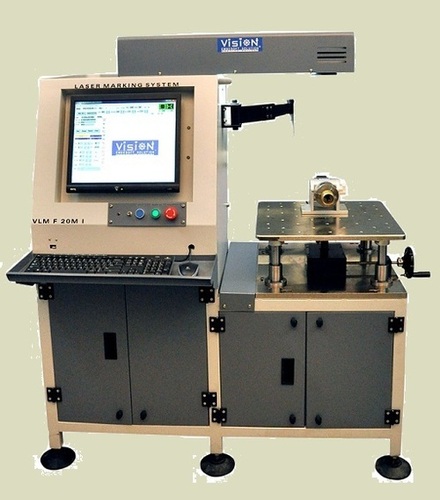

Diode Laser Marking Machine

Diode Laser Marking Machine
Diode Laser Marking Machine
Product Code : 40
Product Description

Having attained a leading position in the industry with our years of experience, we are able to manufacture, supply and export high-grade Diode Laser Marking Machine. It is using for marking and engraving on different jewelry items, automobile vehicles, hardware components and different electrical & electronic instruments. Offered machine is highly demanded among the clients for its rigid construction, optimum performance, resistance against corrosion & abrasion, low energy consumption and less maintenance. Our Diode Laser Marking Machine is stringently checked on various quality parameters to ensure its flawlessness.

Other Technical Features:

  • Overall high power efficiency
  • Diode replacement time is fairly longer than lamp
  • Demands less cooling
  • Smaller in size
  • Moderate initial investment
  • Operating cost significantly lower than lamp pumped laser
  • Better beam quality leads to better marking quality

Technical Specification:



Laser Type

Nd: YAG Diode

Pumping Method

Diode Pumped

Average /CW Output Power

50 W

Wavelength

1064 nm

Beam Quality

M< 5

Pulse Width

< 200 ns

Pulse Repetition Rate /Frequency

1-50 kHz

Peak Power

Upto 35 kW

Red Aiming Beam / Guide Laser

Yes

Laser Class

IV

Ambient Temperature

25 -°C

Electrical Connection

220 V / 50 Hz ; Single Phase: 60 Hz

Power Consumption

< 3 kW

Marking Area

Option: A - 100 x 100 mm

Option: B - 150 x 150 mm

Working Area

Option: A - 200 x 200 mm

Option: B - 400 x 250 mm

Option: C - 500 x 500 mm

Z-Axis Travel / Max. Work Piece Height

Option: A - 100 mm

Option: B - 200 mm

Option: C - 300 mm

Z-Axis Motion Type

Motorized / Manual

Software Features

  • Window 2007 / XP Compatible

  • Single Screen Highly User Friendly Graphic User Interface(GUI)

  • *.plt, *.jpeg, *.bmp, *.dxf compatible

  • Serial Number, Barcode, 2D Matrix Code Marking

  • Auto Marking Activation with delay according to work study

  • Multiple Object Preview/ Single Object Preview

  • RS 232 / Automation Compatible
