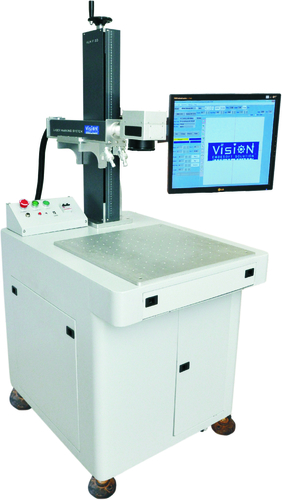

Fiber Laser Marking Machine

Fiber Laser Marking Machine
Fiber Laser Marking Machine
Product Code : 39
Product Description

With the help of our competent of professionals and state-of-the-art infrastructure facilities, we are able to manufacture, supply and export precision engineered Fiber Laser Marking Machine. Known for its high accuracy, faster processing and flexible method of marking this type of machine is used to mark different bar codes, logos, serial numbers and images. The Fiber Laser Marking Machine, Laser Marking Machines, Laser Marking System is useful for designing, marking and hallmarking on various ornaments like bangles, bracelets, necklaces, earrings and pedants. We offer this machine in different dimensions, specifications and power options to fulfill our clients requirements.

Other details:

Fiber Laser Marking System comes with 20 /40 W Laser Power & options of marking area of 100 x 100 mm / 150 x 150 mm.

Fiber Laser Marking also comes with Rotary attachment as an option for marking on circumference of bangles.

Product Advantages:

  • Fiber Laser Marking is very compact, plug-n-play type of system.

  • Fiber Laser Marking runs on single phase electrical connection, so very less electricity consumption.

  • Fiber Laser Marking System does not require laser & optics alignment, which leads to lesser maintenance cost.

  • Fiber Laser Marking System has no consumables like lamp, flow tube, DI filter, diode, etc. So, very less operating cost.

  • Fiber Laser Marking does not require external bulky chiller, only room AC is good enough.

Technical Specification:


Laser Type

Fiber Laser

Pumping Method

Multi-diode Pumped

Average /CW Output Power

20 W

Wavelength

10623 nm

Beam Quality

M< 2

Pulse Width

< 80 ns

Pulse Repetition Rate /Frequency

1-100 kHz

Peak Power

12 kW

Red Aiming Beam / Guide Laser

Yes

Laser Class

IV

Ambient Temperature

25 -°C

Electrical Connection

230 V / 50 Hz ;

Single Phase: 115 V/ 60 Hz

Power Consumption

< 1 kW

Marking Area

Option: A - 100 x 100 mm

Option: B - 150 x 150 mm

Working Area

Option: A - 200 x 200 mm

Option: B - 400 x 250 mm

Option: C - 500 x 500 mm

Z-Axis Travel / Max. Work Piece Height

Option: A - 100 mm

Option: B - 200 mm

Option: C - 300 mm

Z-Axis Motion Type

Motorized / Manual

Software Features

  • Window 2007 / XP Compatible

  • Single Screen Highly User Friendly Graphic User Interface(GUI)

  • *.plt, *.jpeg, *.bmp, *.dxf compatible

  • Serial Number, Barcode, 2D Matrix Code Marking

  • Auto Marking Activation with delay according to work study

  • Multiple Object Preview/ Single Object Preview

  • RS 232 / Automation Compatible
